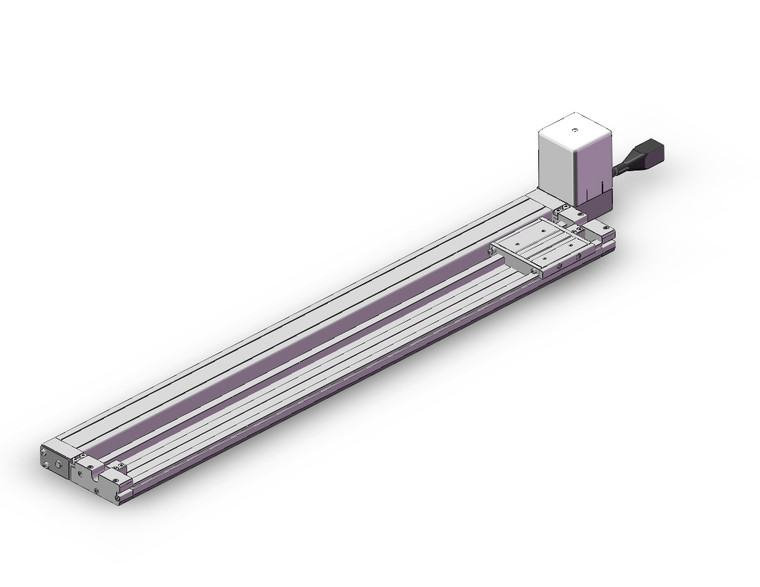

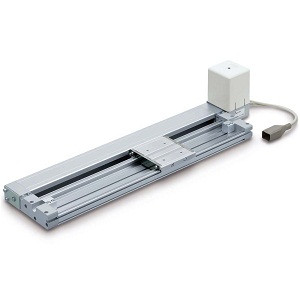

SMC LEMC25T-600-S5C918 LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo/24 VDC) Applicable To The JXC Series
SMC
$1,775.00
The SMC LEMC25T-600-S5C918 is a versatile electric actuator from the LEMC Series, designed with a low profile slider type cam follower guide and a step motor (servo/24 VDC) that is compatible with the JXC Series. This actuator boasts a low profile and low center of gravity, with a table height of just 28 mm for the LEMC/H/HT size 25, making it ideal for applications where space is limited. It can be paired with various guides to suit different needs and offers high maintainability for long-term use.
The motor mounting position is highly adaptable, allowing for placement above or below, and on the right or left, depending on your setup requirements. For added functionality, a solid-state auto switch can be installed for limit and intermediate signal confirmation. The actuator offers selectable controllability, providing complete control similar to an air cylinder with the capability for 12-point intermediate stops. Position setting is made easy through value input, ensuring precise and efficient operation.
Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, the SMC LEMC25T-600-S5C918 is a reliable choice for those seeking a high-performance electric actuator with flexible configuration options.
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Equivalent Lead:
- 48 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- Without Lock
- Actuator Cable Type/Length:
- Standard Cable 5 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller/ Without Plug Connector
