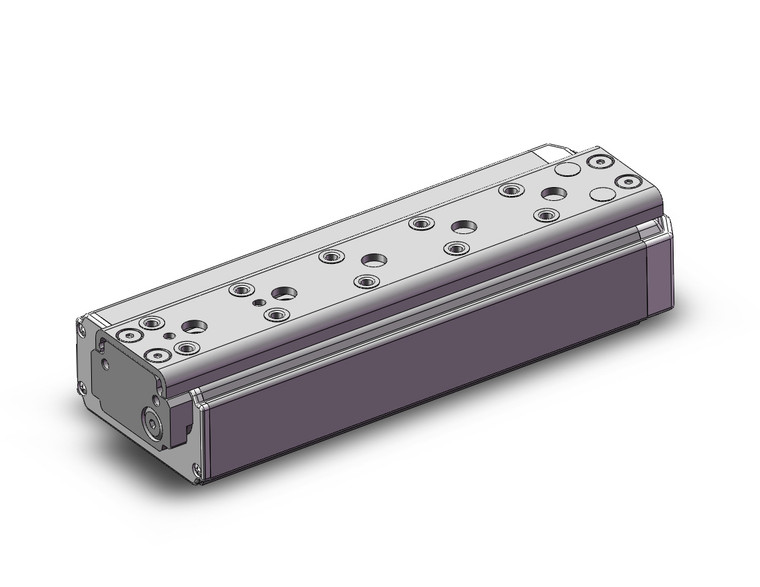

SMC LES16RJ-100 Electric Actuator

LES, Electric Slide Table, Compact Type

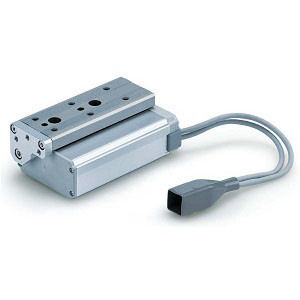

The LES electric actuator combines a motor and ball screw drive, worktable, and linear guide in compact body. The formed sheet metal table allows a lower mounting surface height, lighter weight, and greater vertical work load than the LESH slide table. Body orientations include basic, symmetrical, and inline mounted motor.

- Body sizes: 8, 16, 25
- Strokes: 30, 50, 75, 100, 125, 150 (availability dependent on size)
- Positioning repeatability: 0.05
- Motor can be mounted internally with a right or left table, or in-line
- Motor types: high load step motor or high speed servo motor
