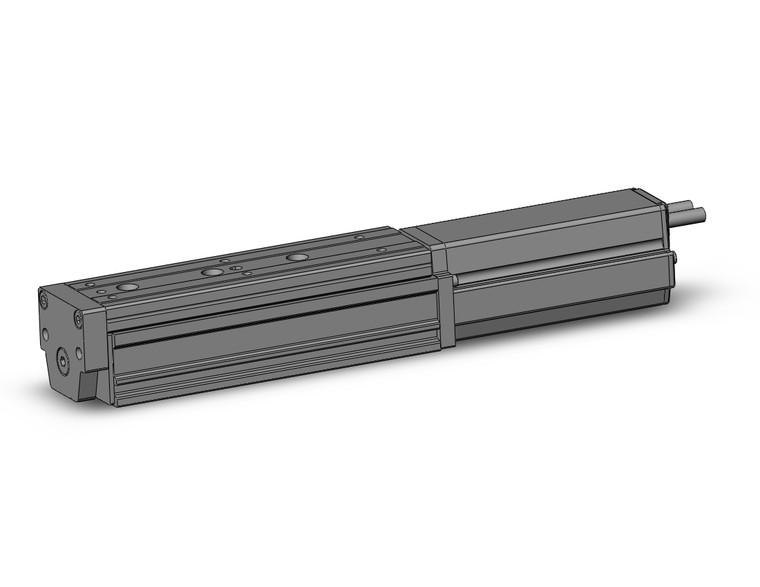

SMC LESH8DJ-50 Electric Actuator
- SKU:
- LESH8DJ-50
- Condition:
- New
- Availability:
- In stock: 3
- Body Size:
- 8
- Type:
- D (In-line Motor Type)
- Motor:
- Step Motor (Servo DC24V)
- Lead Screw:
- J (Size 8= 8mm, Size 16= 10mm, Size 25= 16mm)
- Stroke:
- 50mm
- Lock:
- None
- Body Option:
- Basic
- Mounting:
- w/o Side Holder
- Actuator Cable:
- None
- Actuator Cable Length:
- Without Cable
- Controller:
- Without Controller
- I/O Cable Length:
- Without Cable
- Communication Plug Connector:
- None
- Controller Mounting:
- Screw
Description
LESH, Electric Slide Table, High Rigidity Type
The LESH electric actuator combines a motor and slide screw drive, worktable, and linear guide in compact body. The machined table is more rigid than the LES formed table, enabling higher horizontal loads and improved deflection from offset loading. Body orientations include basic, symmetrical, and inline mounted motor.
- Body sizes: 8, 16, 25- Strokes: 50, 75, 100, 150 (availability dependent on size)
- Positioning repeatability: 0.05
- Motor can be mounted internally with a right or left table, or in-line
- Motor types: high load step motor or high speed servo motor
