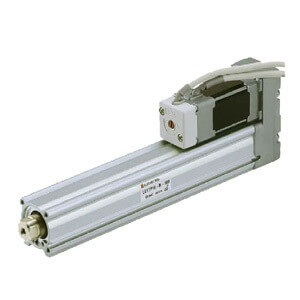

SMC LEY25C-50C-6PD electric actuator rod type electric actuator

(No reviews yet) Write a Review
SKU:
LEY25C-50C-6PD
Condition:
New
Size:
25
Motor Mounting Position:
Top
Motor:
Step Motor (Servo 24 VDC)
Lead Screw:
C (Size 16= 2.5mm, Size 25= 3mm, Size 32/40= 4mm)
Stroke:
50mm
Motor Option:
C (w/Motor Cover)
Rod End Thread:
Female
Mounting:
Both Ends Tapped (Standard)
Actuator Cable:
Without Cable
Actuator Cable Length:
Without Cable
Controller:
6P (PNP Controller)
I/O Cable Length:
Without Cable
Communication Plug Connector:
None
Controller Mounting:
D (DIN Rail)
$885.00

Description

LEY, Electric Actuator, Rod Type

The LEY rod type electric actuator has a familiar rod cylinder form suitable for push, pull, lift and press applications. The 24VDC motor can be reverse mounted for compact length, or inline mounted for compact height. The LEY series offers a wide variety of actuator mounting options as well, including numerous direct and bracket styles.

- Body sizes: 16, 25, 32, 40
- Maximum work load: 60 kg (horizontal); 53 kg (vertical)
- Maximum pushing force: 1058 N
- Maximum stroke: 500 mm
- Positioning repeatability: 0.02 mm
- Motor types: high load step motor or high speed servo motor
