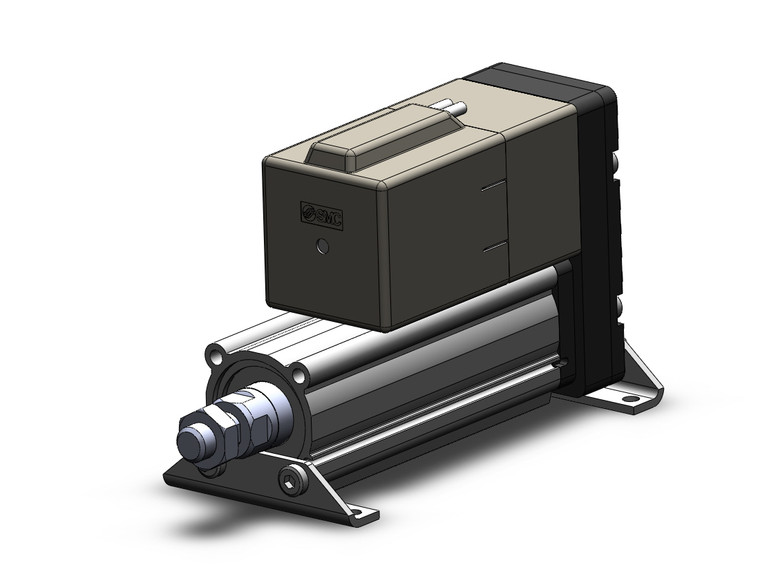

SMC LEY32C-50WML Rod Type Electric Actuator
- SKU:
- LEY32C-50WML
- Condition:
- New
- Size:
- 32
- Motor Mounting Position:
- Top
- Motor:
- Step Motor (Servo 24 VDC)
- Lead Screw:
- C (Size 16= 2.5mm, Size 25= 3mm, Size 32/40= 4mm)
- Stroke:
- 50mm
- Motor Option:
- W (with Lock/Motor Cover)
- Rod End Thread:
- M (Male)
- Mounting:
- L (Foot)
- Actuator Cable:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller:
- Without Controller
- I/O Cable Length:
- Without Cable
- Communication Plug Connector:
- None
- Controller Mounting:
- Screw
Description
LEY, Electric Actuator, Rod Type
The LEY rod type electric actuator has a familiar rod cylinder form suitable for push, pull, lift and press applications. The 24VDC motor can be reverse mounted for compact length, or inline mounted for compact height. The LEY series offers a wide variety of actuator mounting options as well, including numerous direct and bracket styles.
- Body sizes: 16, 25, 32, 40- Maximum work load: 60 kg (horizontal); 53 kg (vertical)
- Maximum pushing force: 1058 N
- Maximum stroke: 500 mm
- Positioning repeatability: 0.02 mm
- Motor types: high load step motor or high speed servo motor
