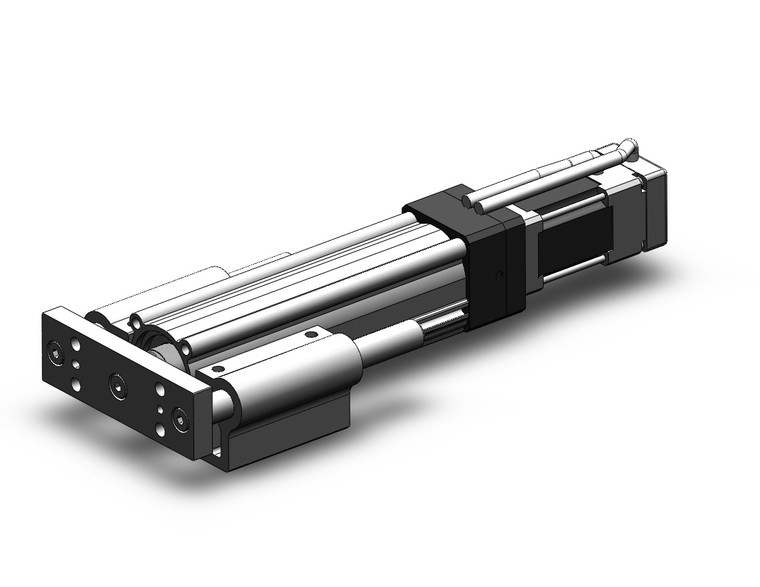

SMC LEYG16MDAB-50 Electric Actuator
- SKU:
- LEYG16MDAB-50
- Condition:
- New
- Size:
- 16
- Bearing Type:
- M (Sliding Bearing)
- Motor Mounting:
- D (In-line Type)
- Motor Type:
- A (Servo Motor, 24 VDC)
- Lead:
- B (Size 16= 5mm, Size 25= 6mm, Size 32/40= 8mm)
- Stroke:
- 50mm
- Motor Option:
- w/o Option
- Guide Option:
- w/o Guide
- Actuator Cable Type:
- w/o Cable
- Actuator Cable Length:
- w/o Cable
- Controller Type:
- w/o Controller
- I/O Cable Length:
- w/o Cable
- Communication Plug Connector:
- None
- Controller Mounting:
- Screw Mounting
Description
LEYG, Electric Actuator, Guide Rod Type
The LEYG guided rod electric actuator pairs an LEY actuator with a bolt-on bearing block with double guide rods. The guide rods counter rotational forces instead of the drive and motor, and also resist shock and sustained lateral loads. Guide blocks can be fitted with either slide or ball bushing bearings.
- Same features and performance as standard LEY, plus:- Maximum stroke: 300 mm
- Bearing types: sliding bushings or ball bushing bearings
- Maximum allowable rotational torque: 5.76 N??ç??m (sizes 32, 40; stroke dependent)
- Non-rotating accuracy of plate: 0.05 0.06 (ball bushing bearing)
