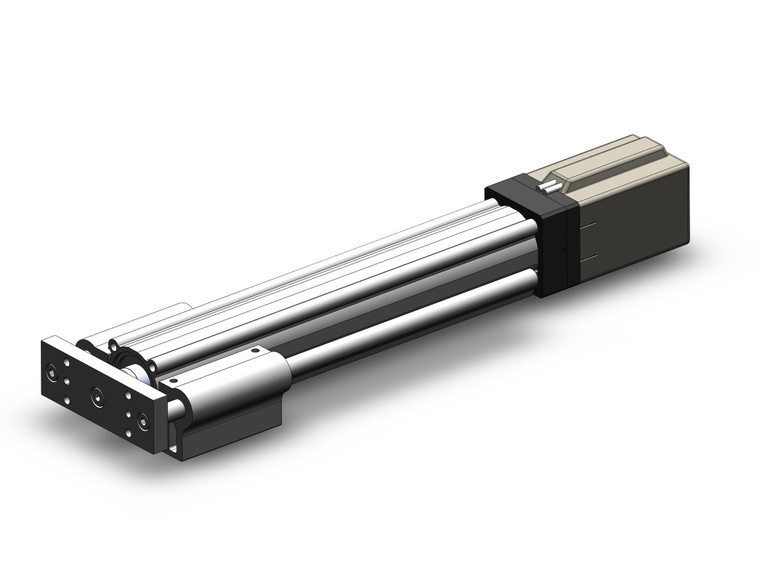

SMC LEYG40LDB-200C LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG40LDB-200C is a versatile electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than comparable rod types, particularly in size 25 with a 100 stroke. This actuator is compatible with both sliding and ball bushing bearings, making it suitable for moment load applications and stopper functions when using sliding bearings. It features advanced speed control and positioning capabilities, supporting up to 64 points for precise operations. Users can select between positioning and pushing control, with the ability to hold the actuator in place when the rod is pushed against a workpiece. The positioning repeatability is impressively accurate at ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series includes a high output AC servo motor option, available in 100/200 W, which enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 5,000mm/S2. The actuator is equipped with an internal absolute encoder and supports pulse input type operations. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This makes the SMC LEYG40LDB-200C an ideal choice for applications requiring precise control and robust performance.
