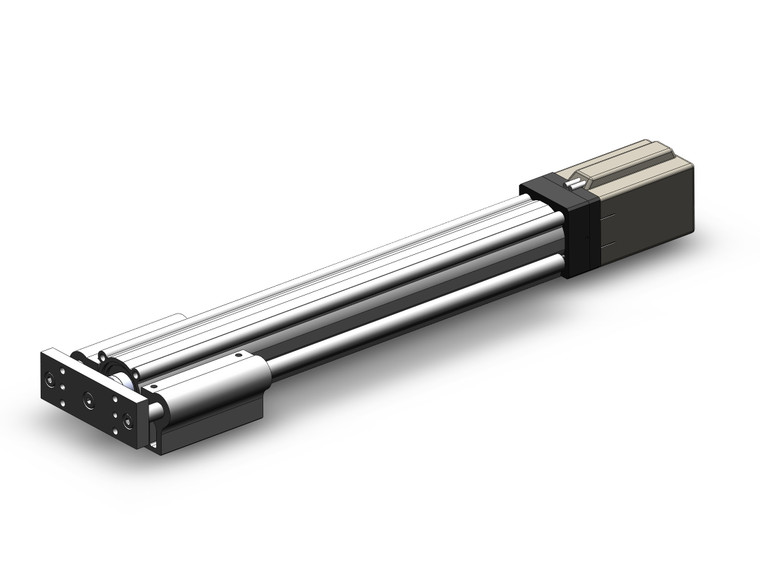

SMC LEYG40LDB-300C LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG40LDB-300C is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100-stroke configuration. This actuator is compatible with both sliding and ball bushing bearings, making it versatile for various applications. It supports moment load and stopper functions with sliding bearings, and offers advanced speed control and positioning capabilities with a maximum of 64 points. Users can select between positioning and pushing control, with the ability to hold the actuator in place when the rod is pushed against a workpiece. The positioning repeatability is impressively precise at ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series features a high output motor (100/200 W) that enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 5,000mm/S2. It includes a pulse input type and an internal absolute encoder for precise operations. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models also discontinued. This actuator is ideal for applications requiring high precision, reliability, and adaptability.
