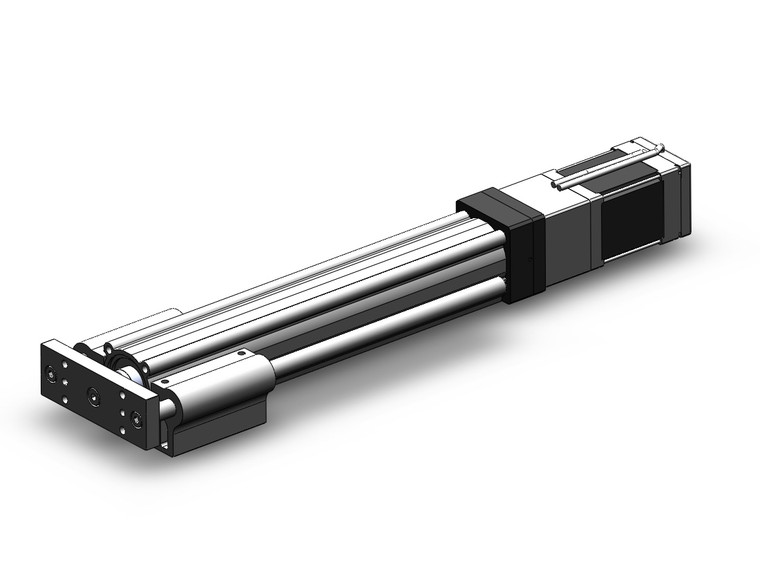

SMC LEYG40LDB-200B LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)
SMC
$1,515.00
The SMC LEYG40LDB-200B is a versatile electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than comparable rod types, particularly in size 25 with a 100 stroke. The actuator is compatible with both sliding and ball bushing bearings, making it suitable for moment load and stopper applications.
With advanced speed control and positioning capabilities, the LEYG40LDB-200B can manage up to 64 positioning points, allowing for precise control and repeatability of ±0.02 mm or less. It also features positioning and pushing control options, enabling the actuator to hold its position when pushing the rod against a workpiece. Compatible with a range of controllers, including JXC51, JXC61, and others, this actuator is adaptable to various industrial applications.
The LEYG Series also includes a high output AC servo motor option, available in 100/200 W, which enhances high-speed transfer abilities and supports high acceleration/deceleration up to 5,000mm/S2. Equipped with an internal absolute encoder and compatible with multiple drivers, the SMC LEYG40LDB-200B is a reliable choice for demanding automation tasks.
- Size:
- 40
- Bearing Type:
- Ball Bushing Bearing
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32/40: 8 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- With Lock
- Guide Option:
- None
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
