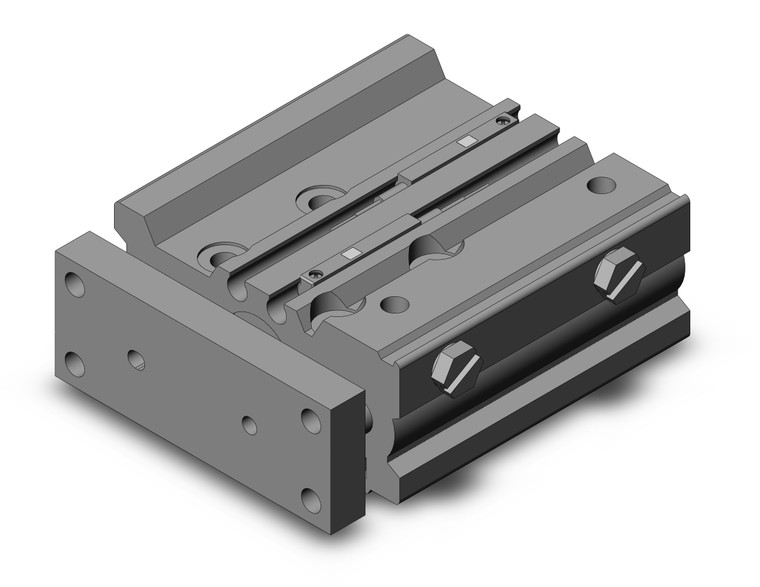

SMC MGPA12-30Z-M9PL Guided Cylinder

MGPA-Z, Guide Rod, High Precision Ball Bushing Cylinder

The MGPA is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The press fitted high precision ball bushing results in a non-rotating accuracy of +/-0.01 across all bore sizes. The stroke adjustment option (XC8, XC9) can be either on the extend or retract cycle and has an adjustment range up to 50 mm.
-

- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- Non-rotating accuracy of +/-0.01 across all bore sizes.
- Adjustable stroke option, extent cycle (XC8)
- Adjustable stroke option, retract cycle (XC9)
- Rubber bumpers as standard
- Auto switch capable
-
