Description

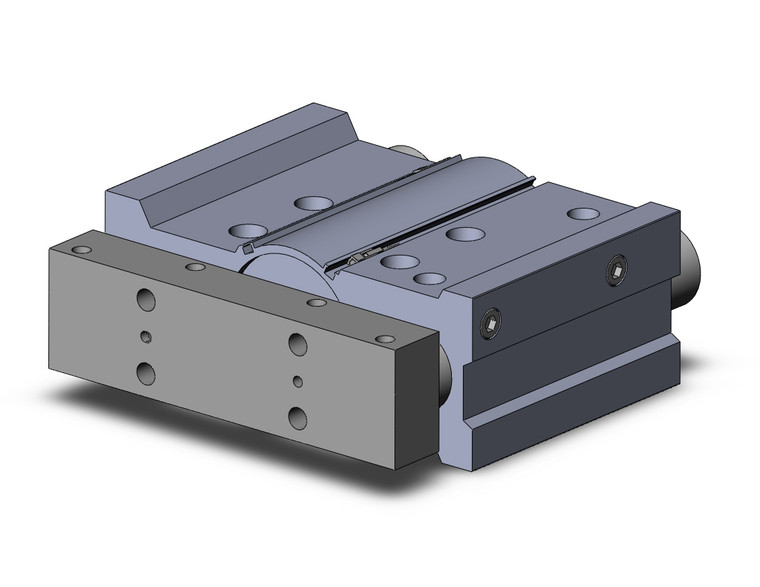

MGPS, Heavy Duty Oversize Guide Rod Cylinder
The MGPs is a compact body actuator integrated with internal oversized guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts resulting in a non-rotating accuracy of +/-0.05 for 50 mm bore and a non-rotating accuracy of +/-0.04 for 80 mm bore. Compared to the standard MGP, the MGPS increases anti-lateral load by 10%, increases eccentric load resistance by 25% and increases impact load resistance by 140%.
-
- Bore size: 50, 80 mm- Stroke lengths: 25, 50, 75, 100, 125, 150, 175, 200 mm
- Non-rotating accuracy of +/-0.05 (50 mm bore)
- Non-rotating accuracy of +/-0.04 (80 mm bore)
- Rubber bumpers as standard
- Auto switch capable
-
