SMC MGPWA50-200 Mgpw, Wide Type, Compact

(No reviews yet) Write a Review
SKU:
MGPWA50-200
Condition:
New
Bearing Type:
A (High precision ball bushing)
Bore Size:
50mm
Port Thread Type:
Non (Rc)
Cylinder Stroke:
200mm
Auto Switch:
No switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
$780.90

Description

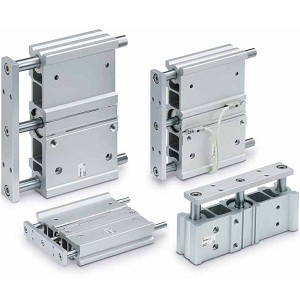

MGPW, Large Width Guided Cylinder

The MGPW is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the rod and piston seals. The (A) press fitted high precision ball bushing is suitable for minimizing the actuator s plate displacement. Non-rotating accuracy +/-0.01 . The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance. Non-rotating accuracy +/-0.03 . The (M) carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts. Non-rotating accuracy ranges from +/-0.03 for 63 mm bore to +/-0.05 for 20 mm bore
-

- Bore sizes: 20, 25, 32, 40, 50, 63 mm
- Stroke lengths: 25, 50, 75, 100, 125, 150, 175, 200 mm
- Rubber bumpers as standard
- Auto switch capable
-

Series Catalog

AutoCAD File
