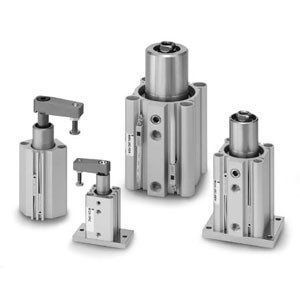

SMC MKB50-30LZ Cylinder, Rotary Clamp

(No reviews yet) Write a Review
SKU:
MKB50-30LZ
Condition:
New
Availability:
In stock: 7
Manufacturer Part #:
MKB50-30LZ
Number of Cores:
2 pcs. [Or None in the Case of No Switch)
Rotary Direction:
Counterclockwise
Made to Order:
None
Clamp Stroke:
30 mm
Mounting:
Through-hole/Both Ends Tapped Common, Basic
Bore Size:
???50 mm
Lead or Prewired Connector:
0.5m [Or None in the Case of No Switch]
Auto Switch:
No Switch
Body Option:
Standard (Female Thread)
$246.65

Description

MK-Z Swing Clamp Cylinder, Standard w/Auto Switch Mounting Grooves

SMC s MK-Z has an allowable moment of inertia 3 times higher than the conventional MK and MK2 styles. The overall length is the same as the conventional styles, and mounting dimensions are interchangeable with the MK series. Auto switches can be mounted on any of the 4 surfaces with no projection of the switch.

- Rotary clamp cylinder w/auto switch mounting grooves
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63
- Standard stroke (mm): 10, 20, 30, 50 (depending on bore size)
- Clockwise or counterclockwise rotary direction
- Auto switch capable

Series Catalog

AutoCAD File
