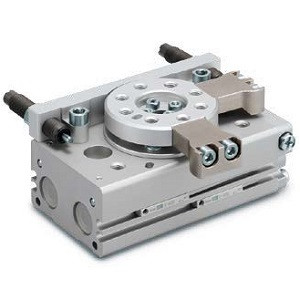

SMC MSQ10L3-M9PM MSQ Series Rotary Table/Rack & Pinion Type With External Absorber

SMC MSQ10L3-M9PM MSQ Series Rotary Table/Rack & Pinion Type With External Absorber

SMC
SKU:
MSQ10L3-M9PM
Availability:
Factory Stock
$462.20
Condition:
New
Current Stock:
Description

MSQ Series Rotary Table/Rack & Pinion Type With External Absorber

  • An external shock absorber option has been added. [New];
  • Compact and lightweight; Height: Max. 28% reduction? (54 mm ? 39 mm); Weight: Max. 28% reduction? (940 g ? 680 g);
  • Enlarged center hole diameter for piping (?9 mm ? ?12 mm); * Compared with the existing model (MSQ20);
  • The adjustable rotation time range is expanded. (0.2 to 2.0 s/90º); Can be used at lower speeds compared with the existing model
    • Additional Information
    Size:
    10
    Shock Absorber Type:
    Shock Absorber For Low Energy
    Port Location/Rotation:
    Standard Type90°
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Port Type:
    M5(10,20)
    Interchangeable Plate:
    None
    Made To Order:
    Standard
