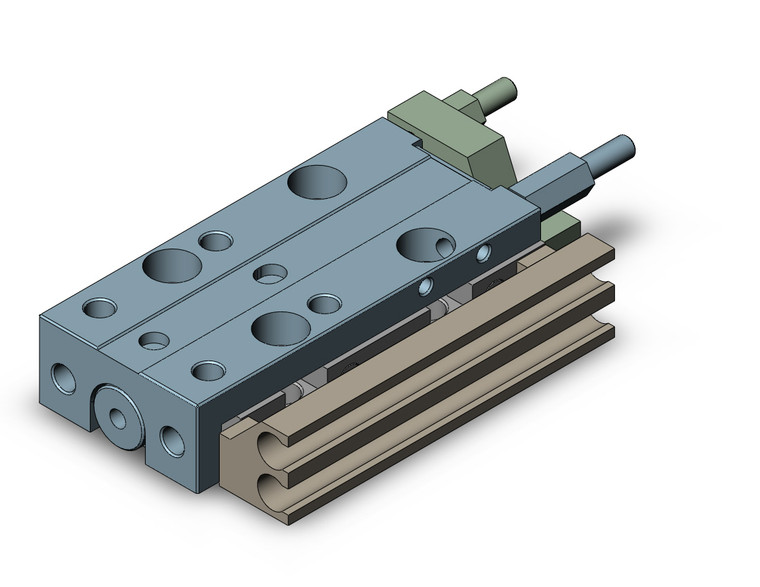

SMC MXJ6-15C Guided Cylinder
- SKU:
- MXJ6-15C
- Condition:
- New
- Availability:
- In stock: 16
- Specification:
- Not Clean Room
- Bore Size:
- 6mm
- Symmetric Type:
- Standard
- Stroke:
- 15mm
- Adjuster:
- Metal Stopper Both Ends
- Function:
- w/o Axial Piping
- Switch Rail:
- w/Magnet & Switch Rail
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- Or None in the Case of No Auto Switch
Description
MXJ, Miniature Precision Slide Table (Linear Bearings)
The MXJ miniature precision slide table provides travelling parallelism of 0.005 mm in a compact package, height: 10 mm and width: 20mm for the 4 mm bore size. Its actuator body and guide block are made from Martensitic stainless steel for high rigidity and integrated to guide rails for isolating the load bearing from the movement of the piston rod and seals. The ports and switch grooves can be specified on either the right or left-side of the body, in a symmetrical location in order to minimize side clearance for adjacent mounting applications.
- Bore sizes: 4, 6, 8 mm- Stroke lengths: 5, 10, 15 and 20 mm
- Stroke adjuster option
- Symmetrical ports and switch grooves capable
- RoHS compliant
- Auto switch capable
-
