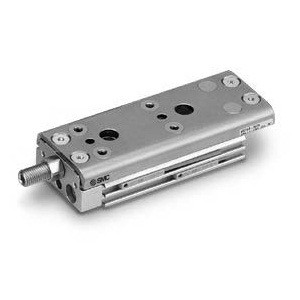

SMC MXQ20B-75ZB Guided Cylinder

(No reviews yet) Write a Review
SKU:
MXQ20B-75ZB
Condition:
New
Bore:
20
Body:
B (Standard)
Stroke:
75mm
Adjuster Option:
ZB (Metal Stopper w/Bumper, Extension)
Auto Switch:
None
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
$492.25
