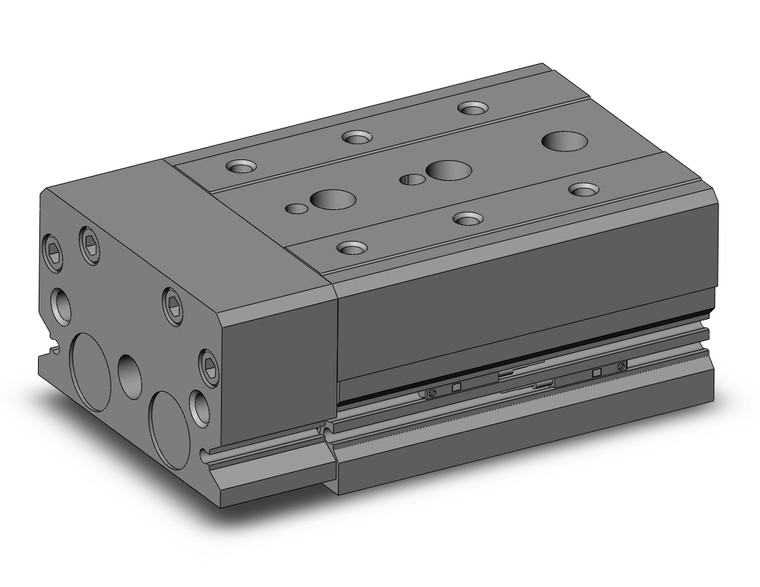

SMC MXS25-50F-M9BSAPC4 Guided Cylinder

(No reviews yet) Write a Review

SKU:: MXS25-50F-M9BSAPC4
Condition:: New
Bore Size:: 25mm
Port Thread:: Rc
Stroke:: 50mm
Adjuster:: w/o Adjuster
Function:: F (Buffer)
Auto Switch:: M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal
Lead Wire or Prewired Connector:: SAPC (0.5m Cord Length, M8-3 Pin Connector)
Number:: 4 pcs.
Stroke Adjuster:: Standard, 5mm

$776.45

Current Stock:

Quantity:

Description

Description

applications that call for precise movement ranging from 10-150mm * typically require a cylinder and a precision guide. the mxs accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. the mxs is available in six sizes each with set stroke lengths and is standard with auto switch capability. stroke adjustments are available for extend, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. in addition, there are many other standard options that include, shock absorbers, end lock, axial piping, and buffer.

air slide table
bore size: 6, 8, 12, 16, 20, 25 *
strokes: 5mm to 150mm, depending upon bore size
with or without stroke adjuster with or without shock
options: buffer, end lock, axial piping
variety of switches with a variety of wire lead lengths

series catalog

replacement parts pdf
