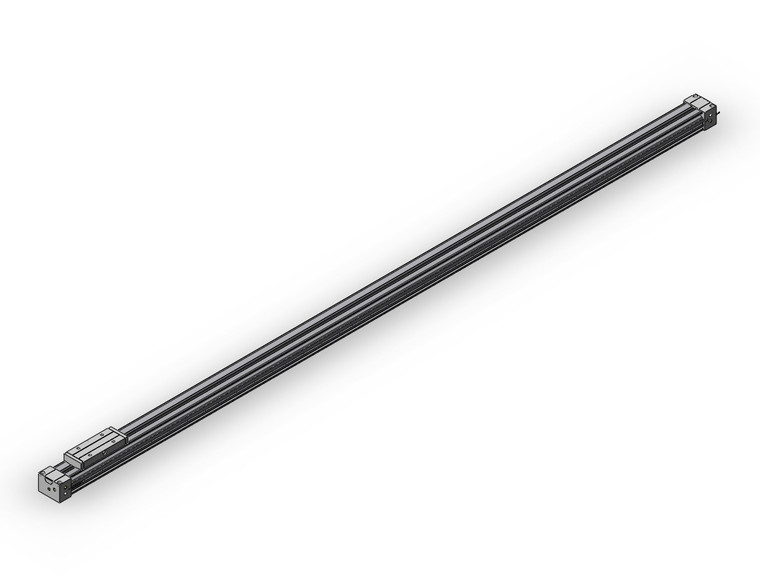

SMC MY1B20-1200-A93L3 Rodless Cylinder
- SKU:
- MY1B20-1200-A93L3
- Condition:
- New
- Bore Size:
- 20mm
- Port Thread:
- Rc (25-100 Bore, M Thread 16-20 Bore)
- Piping:
- Standard
- Stroke:
- 1200mm
- Stroke Adjusting Unit:
- w/o Adjustment Unit
- Auto Switch:
- A93--Reed, DC Volt, AC Volt, LED, Horizontal
- Lead Wire or Prewired Connector:
- L (3m)
- Number:
- 3 pcs.
- Made to Order:
- None
Description
Rodless Cylinder, MY1B, Mechanically Jointed, Standard Bores - Basic Type
The MY1B Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to maintain air pressure combined with an outer dust seal band to protect from contaminants. This design offers a compact footprint compared to rod-style cylinders and features a low profile. Air cushions are standard and external shock absorbers are optional.
- Bore sizes: 16, 20, 50, 63, 80, 100 mm- Stroke lengths: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 3000, 4000, 5000 mm
- Minimum operating pressure: 0.10 ~ 0.15 MPa (15 ~ 22 psi)
- Speed: 100~1000 mm/sec (w/o stroke adjustment bolt), 100~1500 mm/sec (external shock absorber)
- Auto switch capable
-
