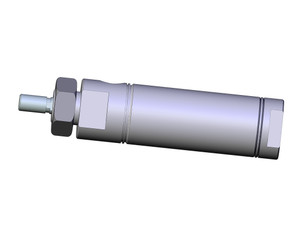

SMC NCDMB106-0100C-X6009B Round Body Cylinder
- SKU:
- NCDMB106-0100C-X6009B
- Condition:
- New
- Magnet:
- D (Built-in)
- Mounting:
- B (Front Nose Mount)
- Bore Size:
- 106 (1 1/16")
- Stroke:
- 0100 (1")
- Cushion:
- C (Urethane)
- Auto Switch:
- None
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- Temperature Option:
- Standard
- Stainless Steel Option:
- X6009B (All Stainless Steel, Food Grade Grease, Viton Wiper & Rod Seal)
- Long Stroke Option:
- Not Required
Description
NC(D)M, All Stainless Steel Cylinder, Double Acting, Single Rod, X6009
All stainless steel exterior double acting single rod version of our NCM cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 2 mounting styles (front nose double end). The double end mount does automatically include a rear clevis hole. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 3/4 to 2 and standard strokes from 1/2 to 12 .
- Corrosion resistant 304 stainless steel exterior components- 6 bore sizes
- Built-in rod wiper protects interior from contaminants
- Auto switch capable
- Dimensionally interchangeable with standard NCM series
