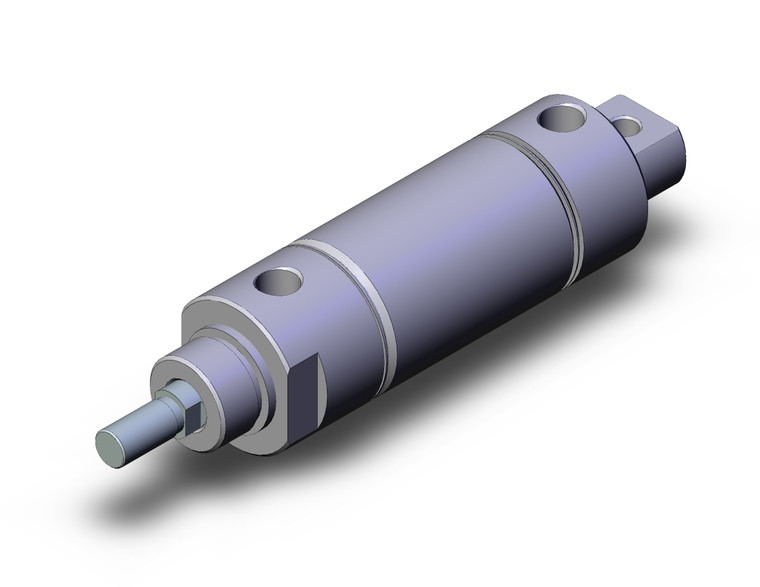

SMC NCDME200-0200-X6009 Round Body Cylinder
- SKU:
- NCDME200-0200-X6009
- Condition:
- New
Description
NC(D)M, All Stainless Steel Cylinder, Double Acting, Single Rod, X6009
All stainless steel exterior double acting single rod version of our NCM cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 2 mounting styles (front nose double end). The double end mount does automatically include a rear clevis hole. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 3/4 to 2 and standard strokes from 1/2 to 12 .
- Corrosion resistant 304 stainless steel exterior components- 6 bore sizes
- Built-in rod wiper protects interior from contaminants
- Auto switch capable
- Dimensionally interchangeable with standard NCM series
Additional Information
Magnet: |
D (Built-in) |
Mounting: |
E (Double End) |
Bore Size: |
200 (2") |
Stroke: |
0200 (2") |
Cushion: |
None |
Auto Switch: |
None |
Lead Wire or Prewired Connector: |
0.5m (Or None in the Case of No Switch) |
Number: |
2 pcs. (Or None in the Case of No Switch) |
Temperature Option: |
Standard |
Stainless Steel Option: |
X6009 (All Stainless Steel) |
Long Stroke Option: |
Not Required |
