Description

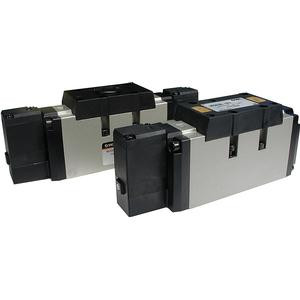

series vfs consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. base mounted manifolds are available in plug-in and non plug-in styles. body ported manifolds are available with bar or separate type manifold bases. port sizes range from 1/8 to 3/4 with rc(pt), nptf and g(pf) thread types available. various options also available.
- fluid: air and inert gas
- operating pressure: 0.1mpa to 1.0mpa
- effective area (cv): 1.7 to 3.6
- coil rated voltage: 100, 200 vac 50/60hz; 24vdc
- response time: 55 or less ms
- ambient/fluid temp: -10 to 60c
