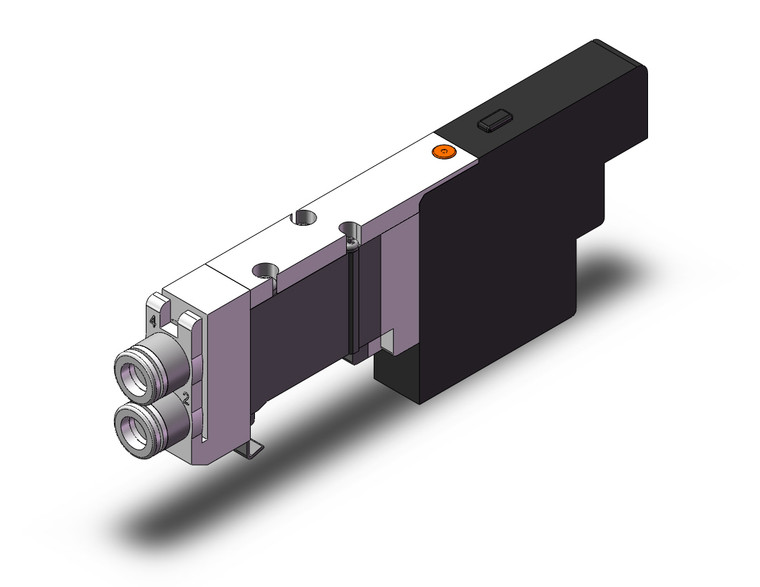

SMC SQ1131N-51-C6-Q 4/5 Port Solenoid Valve
- SKU:
- SQ1131N-51-C6-Q
- Condition:
- New
- Availability:
- In stock: 50
- Actuation:
- 2 Position Single
- Seal:
- Rubber Seal
- Function:
- Negative Common
- Voltage:
- 24VDC
- Manual Override:
- Non-locking Push Type, Tool Required
- Cylinder Port:
- Side Ported ??6 One-touch Fitting
- Manifold Block:
- w/o Manifold Block
- CE Compliant:
- CE Compliant
Description
SQ1*3*, 1000 Series, 5 Port Solenoid Valve, Plug-in Type, New
The 5 port solenoid valves series SQ was designed for applications which demand high speed, high frequency, long life and a precise response time. The SQ uses cassette style valves and manifolds, making it simple to increase or decrease the number of stations on a DIN rail. Valves are available with 12VDC or 24VDC rated voltage. Actuation options include 5 port single solenoid, 5 port double solenoid, and dual 3/2 ported. Manifold variations for the SQ plug-in series include EX510 Gateway-type serial transmission system, D-sub connector, flat ribbon cable connector, PC wiring system compatible flat ribbon cable, terminal block box, or a lead wire kit. The SQ plug lead units are available with D-sub connector, flat ribbon cable connector or PC wiring system compatible flat ribbon cable kits.
- SQ1000, plug-in type valve- Metal or rubber seals
- Low profile and compact
- Easy maintenance
- Variety of options
