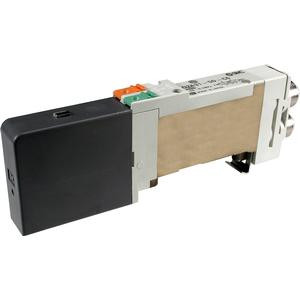

SMC SQ2131N-51-C6 4/5 Port Solenoid Valve
- SKU:
- SQ2131N-51-C6
- Condition:
- New
- Availability:
- In stock: 5
- Actuation:
- 1 (2 Position Single)
- Seal:
- 1 (Rubber Seal)
- Function:
- N (Negative Common)
- Voltage:
- 5 (24VDC)
- Manual Override:
- Non-locking Push Type, Tool Required
- Cylinder Port:
- C6 (Side Ported 6 One-touch Fitting)
- Port Plug Mounting Port:
- None
- Manifold Block:
- w/o Manifold Block
- CE Compliant:
- No
Description
SQ2*3*, 2000 Series, 5 Port Solenoid Valve, Plug-in Type, New
The 5 port solenoid valves series SQ was designed for applications which demand high speed, high frequency, long life and a precise response time. The SQ uses cassette style valves and manifolds, making it simple to increase or decrease the number of stations on a DIN rail. Valves are available with 12VDC or 24VDC rated voltage. Actuation options include 5 port single solenoid, 5 port double solenoid, and dual 3/2 ported. Manifold variations for the SQ plug-in series include EX510 Gateway-type serial transmission system, D-sub connector, flat ribbon cable connector, PC wiring system compatible flat ribbon cable, terminal block box, or a lead wire kit. The SQ plug lead units are available with D-sub connector, flat ribbon cable connector or PC wiring system compatible flat ribbon cable kits.
- Fluid: Air/inert gas- Maximum operating pressure: 0.7MPa
- Effective area mm 0.4W DC (34mA)
- Ambient fluid temperature: -10 to 50 C
