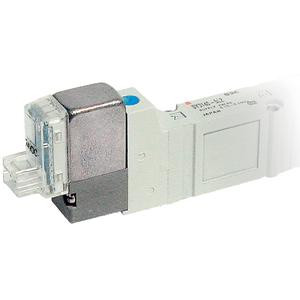

SMC SY3240-3L-01T 4/5 Port Solenoid Valve
- SKU:
- SY3240-3L-01T
- Condition:
- New
- Product Category:
- 5 Port Solenoid Valve
- Type of Actuation:
- 2 Position Double
- Manifold Type:
- Base Mounted
Description
SY3000, 5 Port Solenoid Valve, All Types
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
-
- Fluid: air- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm 2 (Cv): body ported 4.14 (0.23);base mounted 5.4 (0.3)
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light surge voltage suppressor: 15ms or less
- Ambient fluid temperature: 50 C
