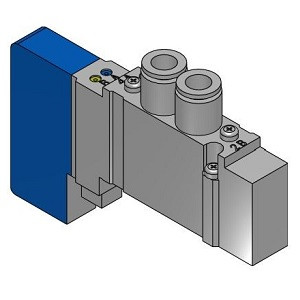

SMC SY5331K-5U1-N7 4/5 Port Solenoid Valve
- SKU:
- SY5331K-5U1-N7
- Condition:
- New
- Actuation:
- 3 (3 Position Closed Center)
- Mounting/Porting:
- 3 (Top Ported)
- Seal:
- 1 (Metal)
- Pilot Specification:
- Internal Pilot
- Back Pressure Check Valve:
- None
- Pilot Valve:
- K [High Pressure Type (1.0MPa), Available w/Metal Seal Only]
- Coil Specification:
- Standard
- Voltage:
- 5 (24VDC)
- Light/Surge Suppressor/Common Specification:
- U (w/Light/Surge Voltage Suppressor, Non-polar)
- Manual Override:
- Non-locking Push Type
- A,B Port Size:
- N7 (1/4" One-touch Fitting)
- Thread:
- Rc (or No Selection in the Case of One-touch Fittings)
- Mounting Option:
- Mounting Screw, Round Head Combination Screw
