Description

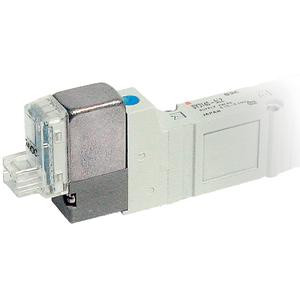

sy5000 sol/valve, rubber seal cg sy5000 body pt 1/8 npt valve, dbl sol, body pt, din
series sy offers major advances in valve performance for cost-effective solutions to your requirements. the series offers high flow with low power consumption in a compact design. the sy is available in body ported or base mounted styles and can be used individually or manifold mounted.
- fluid: air
- operating pressure range: (internal pilot) 0.1 - 0.7mpa
(external pilot) -100kpa to 0.7mpa
(external pilot, pilot pressure range) 0.25 - 0.7mpa - effective area mm 2 (cv): body ported 10.6 (0.59);
base mounted 12.6 (0.7) - coil rated voltage: 3, 5, 6, 12, 24vdc;
100, 110, 200, 220vac - response time (0.5mpa) w/o indicator light &
surge voltage suppressor: 32ms or less - ambient & fluid temperature: 50°c
