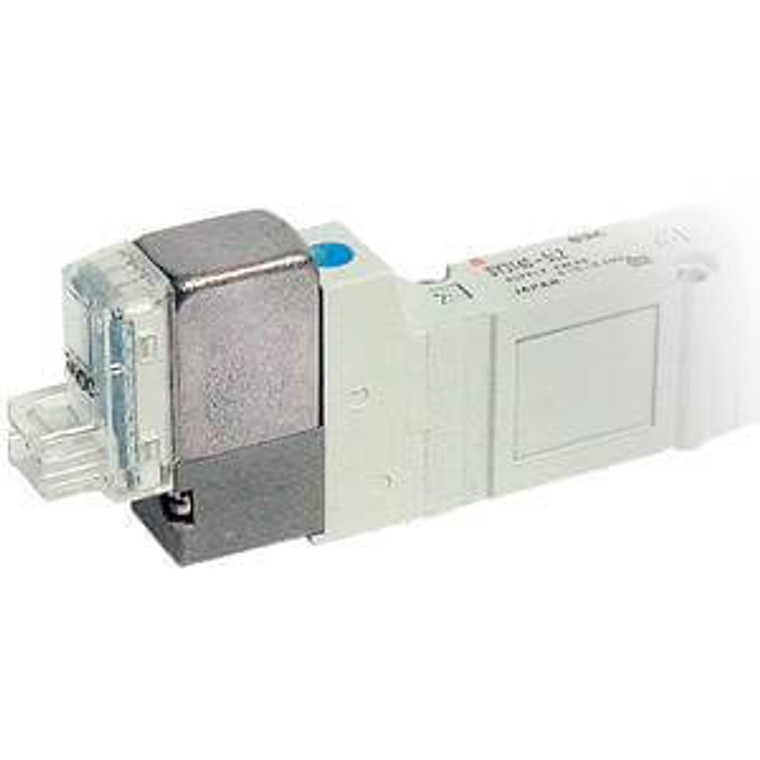

SMC SY7520-3LOZ-N9T 4/5 Port Solenoid Valve
- SKU:
- SY7520-3LOZ-N9T
- Condition:
- New
- Function:
- 5 (3 Position Pressure Center)
- Piping:
- 20 (Body Ported)
- Pilot:
- Internal Pilot
- Specifications:
- Standard
- Voltage:
- 3 (110VAC 50/60HZ)
- Lead Wire:
- LO (L Plug w/o Connector)
- Surge Suppressor:
- Z (Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Style
- Port Size:
- N9 (5/16" One-touch Fitting)
- Thread:
- T (NPTF)
- Option:
- None
Description
series sy offers major advances in valve performance for cost-effective solutions to your requirements. the series offers high flow with low power consumption in a compact design. the sy is available in body ported or base mounted styles and can be used individually or manifold mounted.
- fluid: air
- operating pressure range: (internal pilot) 0.1 - 0.7mpa
(external pilot) -100kpa to 0.7mpa
(external pilot, pilot pressure range) 0.25 - 0.7mpa - effective area mm 2 (cv): body ported 10.6 (0.59);
base mounted 12.6 (0.7) - coil rated voltage: 3, 5, 6, 12, 24vdc;
100, 110, 200, 220vac - response time (0.5mpa) w/o indicator light andamp;
surge voltage suppressor: 32ms or less - ambient andamp; fluid temperature: 50 c
