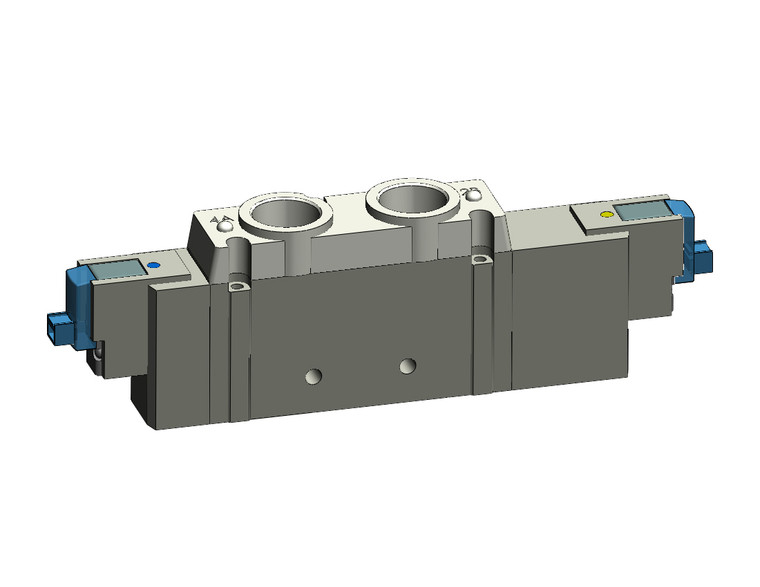

SMC SY9320-5LOZ-03T 4/5 Port Solenoid Valve

(No reviews yet) Write a Review
SKU:
SY9320-5LOZ-03T
Condition:
New
Function:
3 (3 Position Closed Center)
Piping:
20 (Body Ported)
Pilot:
Internal Pilot
Specifications:
Standard
Voltage:
5 (24VDC)
Lead Wire:
LO (L Plug w/o Connector)
Surge Suppressor:
Z (Light & Surge Suppressor)
Manual Override:
Non-locking Push Style
Port Size:
03 (Body Ported/Base Mounted 3/8)
Thread:
T (NPTF)
$87.35

Description

SY9000, 5 Port Solenoid Valve, All Types

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
-

- Fluid: air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Cv up to 2.5
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light surge voltage suppressor: 32ms or less
- Ambient fluid temperature: 50 C
-

Series Catalog
