Description

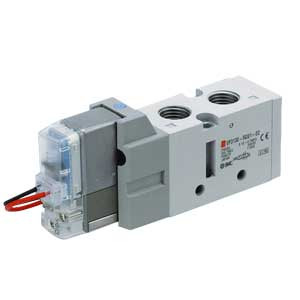

series vf, a five port pilot solenoid valve, offers large flow capacity in a compact size. the vf is available in many variations including three types of manual override and four types of electrical entry. common exhaust for main valve and pilot valve is also available.
- 5 port
- body ported and base mounted types
- built-in full-wave rectifier (ac)
- power consumption : 1.55w standard, 0.55w with power saving circuit
Additional Information
Function: |
2 (2 Position Double) |
Piping: |
3 (Body Ported) |
Exhaust: |
0 (Individual) |
Low Wattage: |
None |
Pressure Specification: |
Standard (0.7MPa) |
Coil Specification: |
Standard |
Voltage: |
6 (12VDC) |
Lead Wire: |
D (DIN Terminal w/Connector) |
Light/Surge Suppressor: |
Z (With light/surge voltage suppressor) |
Manual Override: |
Non-locking Push Type |
A, B Port Size: |
01 (1/8) |
Thread: |
T (NPTF) |
Bracket: |
None |
Made to Order: |
None |
CE Approval: |
None |
