SMC VF3343K-5LD1-03N 4/5 Port Solenoid Valve

(No reviews yet) Write a Review
SKU:
VF3343K-5LD1-03N
MPN:
VF3343K-5LD1-03N
Condition:
New
Function:
3 (3 Position Closed Center)
Piping:
4 (Base Mounted)
Exhaust:
3 (Common)
Low Wattage:
None
Pressure Specification:
K (High-pressure, 1MPa)
Coil Specification:
Standard
Voltage:
5 (24VDC)
Lead Wire:
L (L Plug Connector w/Lead Wire 300mm)
Light/Surge Suppressor:
Without light/surge voltage suppressor
Manual Override:
D (Push-turn Locking Slotted Type)
A, B Port Size:
03 (3/8)
Thread:
N (NPT)
Bracket:
None
Made to Order:
None
CE Approval:
None
$143.65

Description

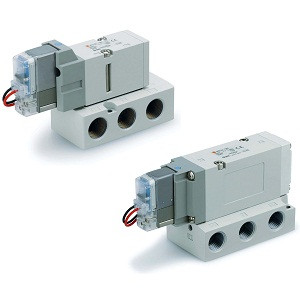

VF3000, 5 Port Solenoid Valve w/Rectifier

Series VF, a five port pilot solenoid valve, offers large flow capacity in a compact size. The VF is available in many variations including three types of manual override and four types of electrical entry. Common exhaust for main valve and pilot valve is also available.
-

- 5 port
- Body ported base mounted types
- Built-in full-wave rectifier (AC)
- Power consumption : 1.55W standard, 0.55W with power saving circuit
-

Series Catalog
