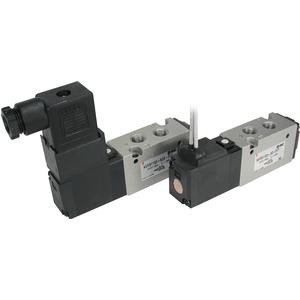

SMC VFS1120-3DZ-01T-F 4/5 Port Solenoid Valve
- SKU:
- VFS1120-3DZ-01T-F
- Condition:
- New
- Function:
- 1 (2 Position Single)
- Piping:
- 20 (Body Ported/Individual Pilot EXH)
- Voltage:
- 3 (110~120VAC 50/60HZ)
- Lead Wire:
- D (DIN Terminal w/Connector)
- Surge Suppressor:
- Z (Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Style (Flush)
- Thread:
- T (NPTF)
- Option:
- F (Foot Bracket)
Description
VFS1000, Body Ported Type Valve
Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF G(PF) thread types available. Various options also available.
-
- VFS1000, body ported type valve- Thread: Rc(PT)
- Fluid: air and inert gas
- Maximum operating pressure: 9.9kgf/cm
- Ambient fluid temperature: -10 to 60 C
- Manual override: non locking push style
-
