Description

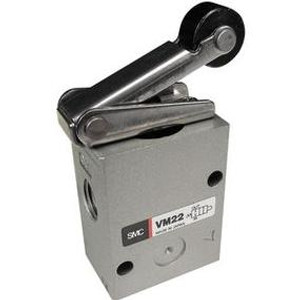

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
- Fluid: air
- Operating pressure: 0 to 1.0MPa
- Effective area (Cv): 19mm 2 (1.0)
- Fluid temperature: -5 to 60 C (no freezing)
- Port size (nominal size): Rc(PT) 1/4 (8A)
