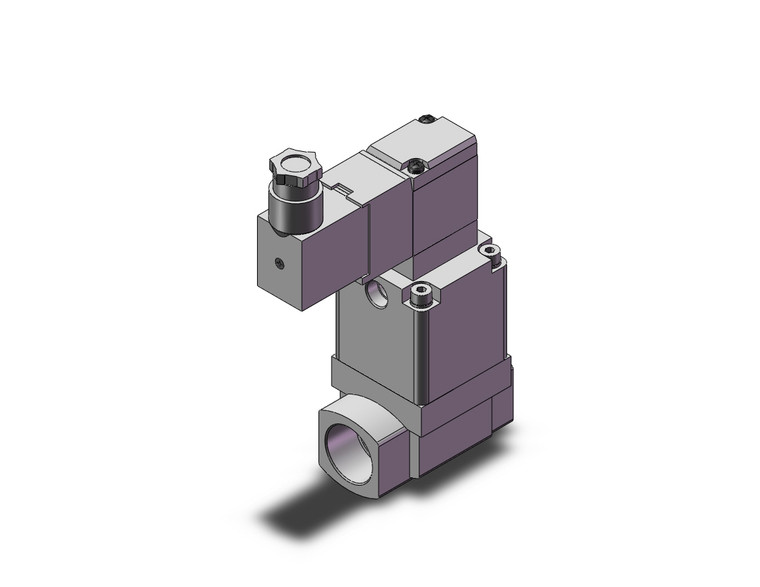

SMC VNA211A-15A-5DZ Process Valve
- SKU:
- VNA211A-15A-5DZ
- Condition:
- New
- Availability:
- In stock: 43
- Size:
- 2 (15)
- Valve Type:
- 1 [NC (Operating Pressure 1MPa)]
- Sealant:
- A (NBR)
- Thread:
- Rc
- Port Size:
- 15A (1/2)
- Voltage:
- 5 (24VDC)
- Lead Wire:
- DZ (DIN Terminal w/Light & Surge Voltage Suppressor)
- Manual Override:
- Non-locking Push Style
- Bracket:
- None
- X200:
- No
- CE Compliant:
- No
Description

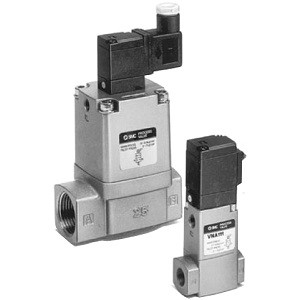

VNA (Solenoid), Process Valve for Air
The VNA series is a universal 2 port valve used for controlling pneumatic systems or air-hydro circuits. Its balanced poppet design permits normal and reverse flow application.
-
- External pilot solenoid type- Compatible with wide range of gas and oil
- Operating pressure range: 0 to 1.0 MPa
- Flow rate ranges from Cv of 0.88 to 43
- Coil rated voltage: AC(50/60Hz) 100V, 200V, DC 24V, others optional
- Fluid temperature: -5 to 60 C (no freezing)
