Description

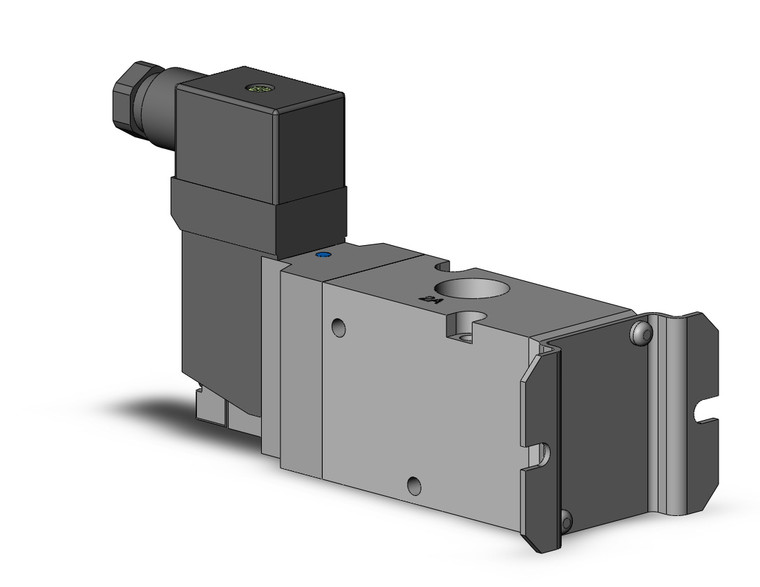

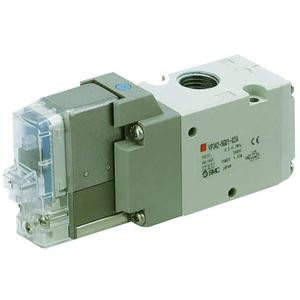

VP300/500/700, 3 Port Solenoid Valve, Body Ported, Single Unit
SMC s VP300/500/700 series solenoid valve, offers high flow capacity and reduced power consumption (1.55W standard, 0.55W with power saving circuit). The series may be used as either a selector valve, or a divider valve. It is vacuum applicable up to ?Çô101.2kPa. Series VP3145/3165/3185 is a large size, 3 port solenoid valve with a rubber seal. It is possible to use the series in vacuum applications or under low pressure. Both series are available in a normally closed or normally open styles.
- 3 port, pilot poppet type valve- Available with power saving circuit to reduce power consumption
- Port sizes from 1/8 to 1/2, depending on series
- Thread types: Rc, G, NPT, NPTF
Additional Information
Manufacturer Part #: |
VP542-5TZ1-03A-F |
Port Size: |
3/8 |
Bracket: |
Bracket |
Series Type: |
VP500 |
Made to Order: |
None |
Electrical Entry: |
Conduit Terminal |
Pilot Port: |
Internal Pilot |
Thread Type: |
Rc |
Voltage: |
24VDC |
Surge Voltage Suppressor: |
Z (With light/surge voltage suppressor) |
Locking Direction: |
Non-locking Push Type |
Type of Actuation: |
N.C., Normally Closed |
Specification: |
Standard |
