Description

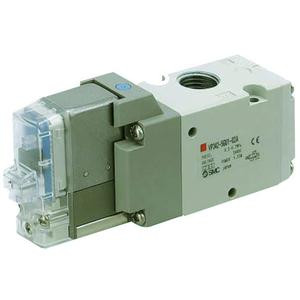

VP300/500/700, 3 Port Solenoid Valve, Body Ported, Single Unit
SMC s VP300/500/700 series solenoid valve, offers high flow capacity and reduced power consumption (1.55W standard, 0.55W with power saving circuit). The series may be used as either a selector valve, or a divider valve. It is vacuum applicable up to ?ë?¢?Æ101.2kPa. Series VP3145/3165/3185 is a large size, 3 port solenoid valve with a rubber seal. It is possible to use the series in vacuum applications or under low pressure. Both series are available in a normally closed or normally open styles.
- 3 port, pilot poppet type valve- Available with power saving circuit to reduce power consumption
- Port sizes from 1/8 to 1/2, depending on series
- Thread types: Rc, G, NPT, NPTF
Additional Information
Series: |
542 (VP500) |
Pilot Type: |
R (External Pilot) |
Pressure Specification: |
Standard (0.7MPa) |
Coil Specification: |
Standard |
Voltage: |
5 (24VDC) |
Electrical Entry: |
D (DIN Terminal w/Connector) |
Light & Surge Suppressor: |
Z (Light & Surge Suppressor) |
Manual Override: |
Non-locking Push Type |
Port Size: |
03 (3/8) |
Thread Type: |
N (NPT) |
Actuation Type: |
A (N.C., Normally Closed) |
Bracket: |
None |
Made to Order: |
None |
