SMC VP544-5DZ1-03-M-X538 3 Port Solenoid Valve
- SKU:
- VP544-5DZ1-03-M-X538
- Condition:
- New
- Availability:
- In stock: 64
Description
VP*4*-X538, Residual Pressure Release Valve, ISO13849-1
Special version of the VP series valve that conforms to ISO13849-1 safety standard, categories 3 and 4. These are a dual residual pressure release valve with detection of main valve position.
- Safety standard ISO13849-1 for category 3 and 4- Dual residual pressure release valve with detection of main valve position
- Type of actuation: NC (return spring)
Additional Information
Porting Style: |
Base Mounted |
Port Size: |
3/8" |
Thread Type: |
Rc |
Safety Limit Switch and wiring: |
Omron with M12 connector |
Pilot: |
Internal pilot |
Related Products

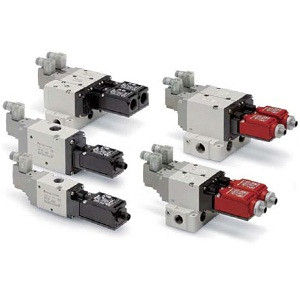

SMC VP544R-5DZ1-03-M-X538 3 Port Solenoid Valve
