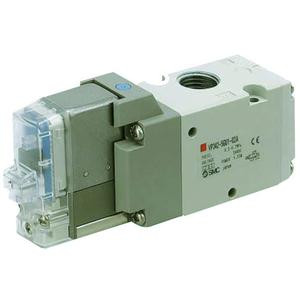

SMC VP742-3DZ1-03TB 3 Port Solenoid Valve
- SKU:
- VP742-3DZ1-03TB
- Condition:
- New
- Availability:
- In stock: 51
- Series:
- 742 (VP700)
- Pilot Type:
- Internal Pilot
- Pressure Specification:
- Standard (0.7MPa)
- Coil Specification:
- Standard
- Voltage:
- 3 [110VAC (115VAC), 50/60Hz]
- Electrical Entry:
- D (DIN Terminal w/Connector)
- Light & Surge Suppressor:
- Z (Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Type
- Port Size:
- 03 (3/8)
- Thread Type:
- T (NPTF)
- Actuation Type:
- B (N.O., Normally Open)
- Bracket:
- None
- Made to Order:
- None
Description
VP300/500/700, 3 Port Solenoid Valve, Body Ported, Single Unit
SMC s VP300/500/700 series solenoid valve, offers high flow capacity and reduced power consumption (1.55W standard, 0.55W with power saving circuit). The series may be used as either a selector valve, or a divider valve. It is vacuum applicable up to ?ë?¢?Æ101.2kPa. Series VP3145/3165/3185 is a large size, 3 port solenoid valve with a rubber seal. It is possible to use the series in vacuum applications or under low pressure. Both series are available in a normally closed or normally open styles.
- 3 port, pilot poppet type valve- Available with power saving circuit to reduce power consumption
- Port sizes from 1/8 to 1/2, depending on series
- Thread types: Rc, G, NPT, NPTF
