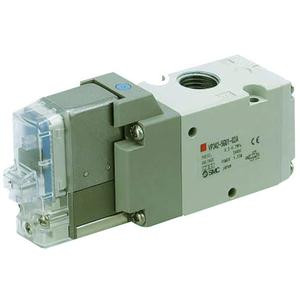

SMC VP742R-5YD1-04FA 3 Port Solenoid Valve
- SKU:
- VP742R-5YD1-04FA
- Condition:
- New
- Series:
- 742 (VP700)
- Pilot Type:
- R (External Pilot)
- Pressure Specification:
- Standard (0.7MPa)
- Coil Specification:
- Standard
- Voltage:
- 5 (24VDC)
- Electrical Entry:
- Y [DIN Terminal (EN175301-803) w/Connector]
- Light & Surge Suppressor:
- w/o Light & Surge Suppressor
- Manual Override:
- D (Push-turn Locking Slotted Type)
- Port Size:
- 04 (1/2)
- Thread Type:
- F (G)
- Actuation Type:
- A (N.C., Normally Closed)
- Bracket:
- None
- Made to Order:
- None
Description
VP300/500/700, 3 Port Solenoid Valve, Body Ported, Single Unit
SMC s VP300/500/700 series solenoid valve, offers high flow capacity and reduced power consumption (1.55W standard, 0.55W with power saving circuit). The series may be used as either a selector valve, or a divider valve. It is vacuum applicable up to ?ë?¢?Æ101.2kPa. Series VP3145/3165/3185 is a large size, 3 port solenoid valve with a rubber seal. It is possible to use the series in vacuum applications or under low pressure. Both series are available in a normally closed or normally open styles.
- 3 port, pilot poppet type valve- Available with power saving circuit to reduce power consumption
- Port sizes from 1/8 to 1/2, depending on series
- Thread types: Rc, G, NPT, NPTF
