Description
the vqc series has five standard wiring packages bringing a world of ease to wiring and maintenance work, while the protective enclosures of three of them conform to ip67 standards for protection from dust and moisture. the use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration. the vqc series has outstanding response times and long life.

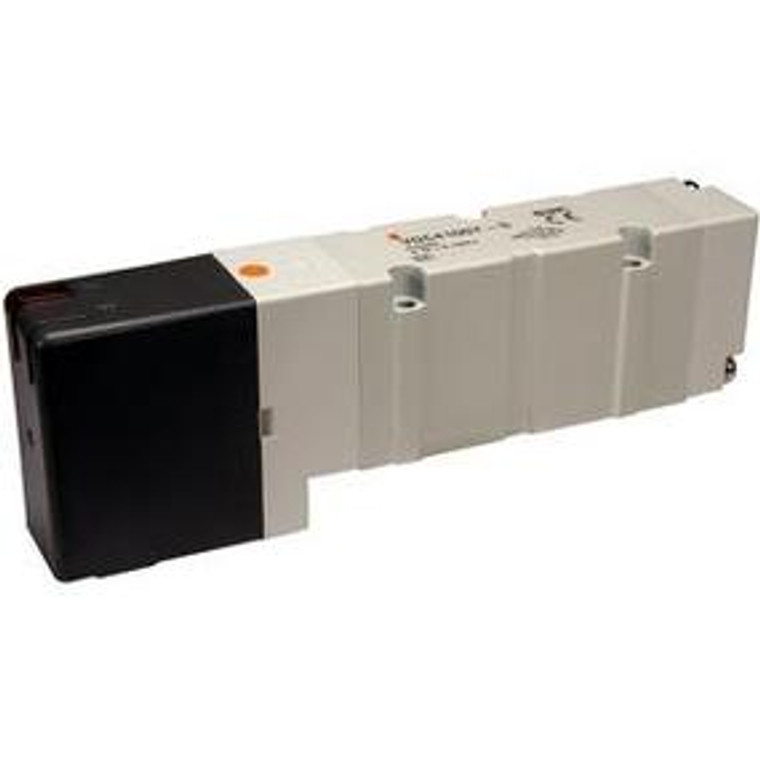

- 5 port solenoid valve, base mount, plug-in
- fluid: air/inert gas
- operating pressure: 1.0mpa [0.7mpa (low wattage)]
- effective area (cv): 1.7 metal seal; 2.0 rubber seal
- coil rated voltage: 24vdc
- enclosure: dust proof (conforms to ip67)
