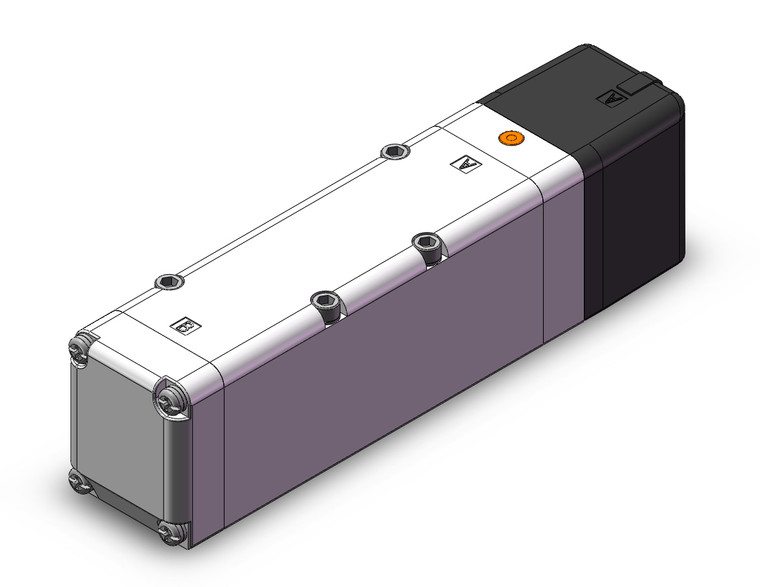

SMC VQC5100-51 4/5 Port Solenoid Valve
- SKU:
- VQC5100-51
- Condition:
- New
- Availability:
- In stock: 167
- Actuation:
- 1 (2-position Single)
- Seal:
- 0 (Metal Seal)
- Function:
- Standard (0.95 W)
- Coil Voltage:
- 5 (24 VDC)
- Light/Surge Voltage Suppressor:
- w/Light and Surge Suppressor
- Manual Override:
- Non-locking Push Style
Description
VQC5000, 5 Port Solenoid Valve, Base Mounted, Plug-in
The VQC series has five standard wiring packages bringing a world of ease to wiring and maintenance work, while the protective enclosures of three of them conform to IP67 standards for protection from dust and moisture. The use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration. The VQC series has outstanding response times and long life.
- 5 port solenoid valve, base mount, plug-in- Fluid: air/inert gas
- Operating pressure: 1.0MPa [0.7MPa (low wattage)]
- Flow rate (Cv): 3.4 Metal seal; 4.7 Rubber seal
- Coil rated voltage: 12VDC, 24VDC
- Enclosure: dust proof (conforms to IP67)
-
