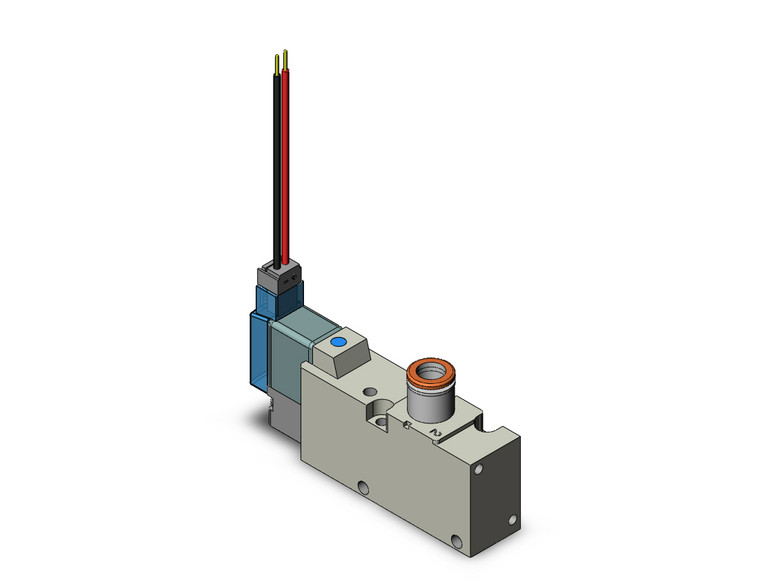

SMC VQZ232R-5M1-N7T 3 Port Solenoid Valve
- SKU:
- VQZ232R-5M1-N7T
- Condition:
- New
- Availability:
- In stock: 113
- Series:
- 2 (VQZ200)
- Composite Symbol:
- 3 (Rubber Seal N.C.)
- Function:
- R (External Pilot)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- M (M Plug Connector w/Lead Wire 0.3m)
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- None
- Port Size:
- N7T (1/4" One-touch Fitting)
- Option:
- None
- CE Compliant:
- No
Description
VQZ**2, 200/300 Series, 3 Port Solenoid Valve, Body Ported
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
-
- Fluid: air, inert gas- Operating pressure range: 0.1 - 0.7MPa(high pressure style: 1.0MPa)
- Cv factor: VQZ200 0.4 - 0.6; VQZ300 0.75 - 0.9
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Response time:VQZ200 metal seal 14ms or less; rubber seal 15ms or lessVQZ300 metal seal 17ms or less; rubber seal 25ms or less
-
