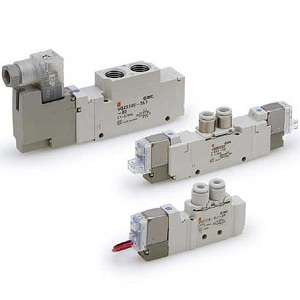

SMC VQZ3120B-5YZB1-02 4/5 Port Solenoid Valve
- SKU:
- VQZ3120B-5YZB1-02
- Condition:
- New
- Series:
- 3 (VQZ3000)
- Configuration:
- 1 (2 Position Single)
- Seal Type:
- 0 (Metal Seal)
- Function:
- B (High Speed Response 0.9W - DC Only)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- YZ (DIN Terminal w/Light & Surge Suppressor)
- Manual Override:
- B (Locking Slotted Style)
- IP65 Compliant:
- No
- Port Size:
- 02 (Rc1/4)
- Thread:
- Rc
- Foot Bracket:
- None
- CE Compliant:
- No
Description
series vqz base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. series vqz body ported solenoid valves combine flexibility with high performance and long life in an inline body style.
- fluid: air, inert gas
- operating pressure range: 0.1 - 0.7mpa
- effective area mm 2 (cv):
metal seal 2.0 (0.11) - 12.6 (0.7);
rubber seal 3.1 (0.17) - 16.2 (0.9) - coil rated voltage: 12, 24vdc;
100, 110, 200, 220vac - response time (ms) standard 1w, high pressure 1.5w:
metal seal 25 or less; rubber seal 30 or less - ambient and fluid temperature: -10 to 50 c
