SMC VQZ312K-5YOSB1-02 3 Port Solenoid Valve
- SKU:
- VQZ312K-5YOSB1-02
- Condition:
- New
- Series:
- 3 (VQZ300)
- Composite Symbol:
- 1 (Metal Seal N.C.)
- Function:
- K (High Pressure, 0.9W)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- YOS (Din Terminal w/o Connector w/Surge Suppressor)
- Manual Override:
- B (Locking Slotted Style)
- IP65 Compliant:
- None
- Port Size:
- 02 (Rc1/4)
- Option:
- None
- CE Compliant:
- No
Description

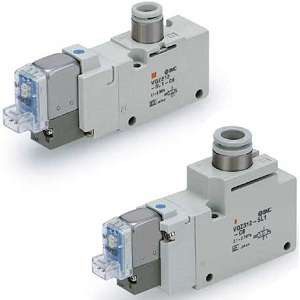

VQZ**2, 200/300 Series, 3 Port Solenoid Valve, Body Ported
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
-
- Fluid: air, inert gas- Operating pressure range: 0.1 - 0.7MPa(high pressure style: 1.0MPa)
- Cv factor: VQZ200 0.4 - 0.6; VQZ300 0.75 - 0.9
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Response time:VQZ200 metal seal 14ms or less; rubber seal 15ms or lessVQZ300 metal seal 17ms or less; rubber seal 25ms or less
-
