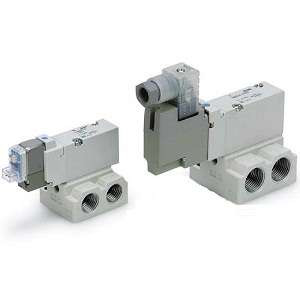

SMC VQZ315KR-5L1-02T 3 Port Solenoid Valve
- SKU:
- VQZ315KR-5L1-02T
- Condition:
- New
- Series:
- 3 (VQZ300)
- Composite Symbol:
- 1 (Metal Seal N.C.)
- Function:
- KR (K + R)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- L (L Plug Connector w/Lead Wire 0.3m)
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- None
- 1:
- 1
- Port Size:
- 02T (Base Mounted w/Sub-plate NPTF1/4)
- CE Compliant:
- No
Description
series vqz base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. series vqz body ported solenoid valves combine flexibility with high performance and long life in an inline body style.
- fluid: air, inert gas
- operating pressure range: 0.1 - 0.7mpa
- effective area mm 2 (cv):
metal seal 2.0 (0.11) - 12.6 (0.7);
rubber seal 3.1 (0.17) - 16.2 (0.9) - coil rated voltage: 12, 24vdc;
100, 110, 200, 220vac - response time (ms) standard 1w, high pressure 1.5w:
metal seal 25 or less; rubber seal 30 or less - ambient and fluid temperature: -10 to 50 c
