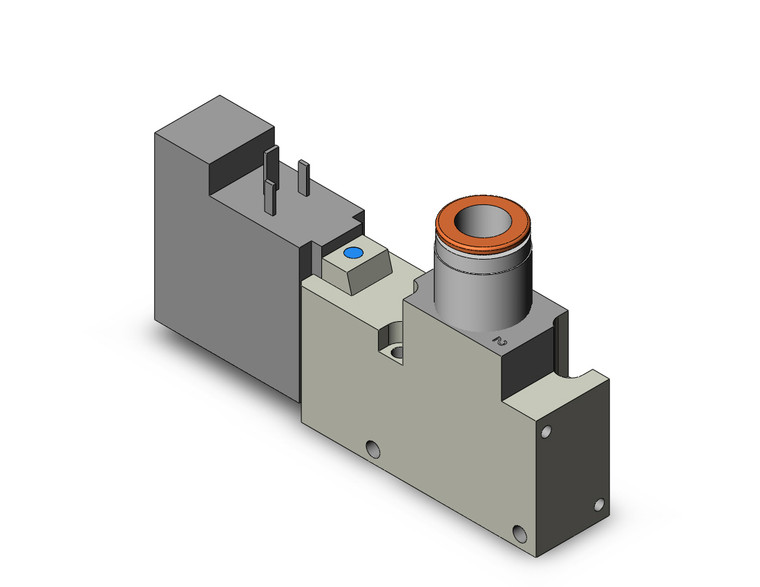

SMC VQZ332-5YOS1-N11T 3 Port Solenoid Valve
- SKU:
- VQZ332-5YOS1-N11T
- Condition:
- New
- Availability:
- In stock: 15
- Series:
- 3 (VQZ300)
- Composite Symbol:
- 3 (Rubber Seal N.C.)
- Function:
- Standard (0.35W DC, AC)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- YOS (Din Terminal w/o Connector w/Surge Suppressor)
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- None
- Port Size:
- N11T (3/8" One-touch Fitting)
- Option:
- None
- CE Compliant:
- No
Description
series vqz base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. series vqz body ported solenoid valves combine flexibility with high performance and long life in an inline body style.
- fluid: air, inert gas
- operating pressure range: 0.1 - 0.7mpa
- effective area mm 2 (cv):
metal seal 2.0 (0.11) - 12.6 (0.7);
rubber seal 3.1 (0.17) - 16.2 (0.9) - coil rated voltage: 12, 24vdc;
100, 110, 200, 220vac - response time (ms) standard 1w, high pressure 1.5w:
metal seal 25 or less; rubber seal 30 or less - ambient and fluid temperature: -10 to 50c
