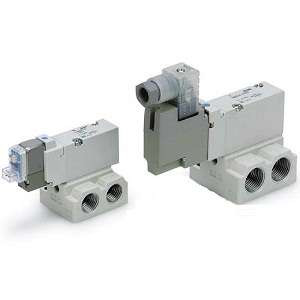

SMC VQZ335-3LO1 3 Port Solenoid Valve
- SKU:
- VQZ335-3LO1
- Condition:
- New
- Series:
- 3 (VQZ300)
- Composite Symbol:
- 3 (Rubber Seal N.C.)
- Function:
- Standard (0.35W DC, AC)
- Coil Voltage:
- 3 (110VAC 50/60HZ)
- Lead Wire:
- LO (L Plug w/o Connector)
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- None
- 1:
- 1
- Port Size:
- w/o Sub-plate
- CE Compliant:
- No
Description
series vqz base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. series vqz body ported solenoid valves combine flexibility with high performance and long life in an inline body style.
- fluid: air/inert gas
- operating pressure range: 0.1 - 0.7mpa
(high pressure type 1.0mpa) - effective area mm 2 (cv):
metal seal 2.2 (0.12) - 16.2 (0.9); rubber seal 3.6 (0.2) - 21.6 (1.2) - coil rated voltage: 12, 24vdc;
100, 110, 200, 220vac - response time (ms) standard 1w, high pressure 1.5w:
metal seal 25 or less; rubber seal 30 or less - ambient and fluid temperature: -10 to 50 c
