SMC SS5YJ3-S41-05-C4 SY5000 Valve Manifold, One-touch Fitting For Φ4
SMC
$63.35
SMC SS5YJ3-S41-05-C4 - SYJ3000 Series 5Port Solenoid Valve Base Mounted Manifold Type 41

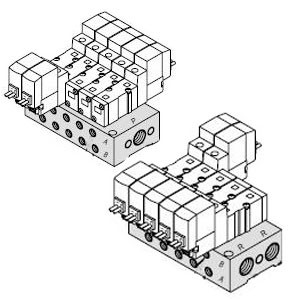

The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Valve Mounting Direction | Single Solenoid Pilot Valve Is On Same Side As The A,B Port |
| Stations | 5 Stations |
| A/B Port Size | One-touch Fitting For Φ4 |
| P,R Port Thread Type | Rc |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- SYJ3000-33-1 - Plug
- SY100-33-3 - Round Head Combination Screw
- SYJ3000-14-11 - Gasket
- SYJ3000-21-12A - Blanking Plate Assembly
Frequently Asked Questions
What port size does the SS5YJ3-S41-05-C4 have?
The A and B ports are One-touch Fitting For Φ4.
How many stations does the SS5YJ3-S41-05-C4 have?
This manifold is configured for 5 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Valve Mounting Direction:
- Single Solenoid Pilot Valve Is On Same Side As The A,B Port
- Stations:
- 5 Stations
- A/B Port Size:
- One-touch Fitting For Φ4
- P,R Port Thread Type:
- Rc
