SMC SS5YJ3-S41-10-C4 SY5000 Valve Manifold, One-touch Fitting For Φ4
SMC
$132.20

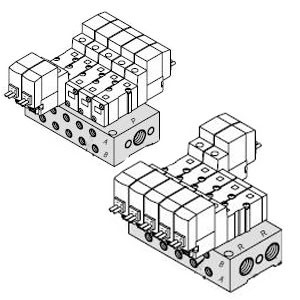

SMC SS5YJ3-S41-10-C4 - SYJ3000 Series 5Port Solenoid Valve Base Mounted Manifold Type 41
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Valve Mounting Direction | Single Solenoid Pilot Valve Is On Same Side As The A,B Port |
| Stations | 10 Stations |
| A/B Port Size | One-touch Fitting For Φ4 |
| P,R Port Thread Type | Rc |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- SYJ3000-33-1 - Plug
- SY100-33-3 - Round Head Combination Screw
- SYJ3000-14-11 - Gasket
- SYJ3000-21-12A - Blanking Plate Assembly
Frequently Asked Questions
What port size does the SS5YJ3-S41-10-C4 have?
The A and B ports are One-touch Fitting For Φ4.
How many stations does the SS5YJ3-S41-10-C4 have?
This manifold is configured for 10 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Valve Mounting Direction:
- Single Solenoid Pilot Valve Is On Same Side As The A,B Port
- Stations:
- 10 Stations
- A/B Port Size:
- One-touch Fitting For Φ4
- P,R Port Thread Type:
- Rc
