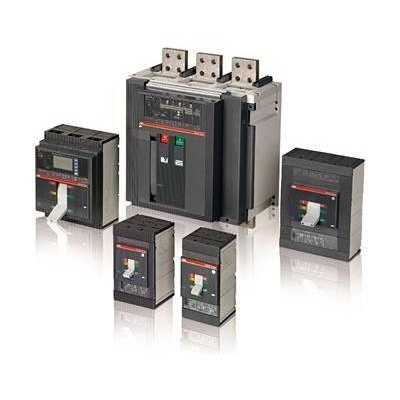

ABB T3NQ090TW

(No reviews yet) Write a Review
SKU:
T3NQ090TW
Condition:
New
  • ABB T3NQ090TW
  • ABB T3NQ090TW

Description

Overview

ABB

Molded Case Circuit Breakers, TMAX Series

Item# T3NQ090TW - Circuit Breaker

TMAX Series Information
  • Branch Circuit Protector
  • UL 489 Listed E93565
  • 15 ~ 2500 Amps
  • 240/277/480/600Y VAC
  • 250/500/600 VDC
The Tmax Series of circuit breakers from ABB offer a full range of molded case circuit breakers that meet the UL 489 and CSA C22.2 Standards. Covering current ratings between 15 A and 2500 A and interrupting ratings, at 480 V AC, up to 150 kA. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, undervoltage release, and more.

Specifications

Item Number:
T3NQ090TW
UPC:
662019197012
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
TMAX
Poles:
3
Amps:
90
UL Standard:
489
kAIC @ 480 VAC:
25
Max Voltage:
600Y/347 VAC;500 VDC
Shunt Trip:
Optional
Protection:
Branch Circuit
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Sold Separately
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Panel
Neutral Pole:
No
kAIC @ 240 VAC:
50
CSA Standard:
22.2
IEC Standard:
EN60898/60947-2
Neutral Protection:
No
100% Rated:
Yes
IR @ 600Y/347 VAC:
10
kAIC @ 250 VDC:
25
kAIC @ 500 VDC:
25
Alarm Switch:
Optional
Approvals:
UL;CSA;IEC
H x W x D:
5.9 in x 4.13 in x 2.76 in
  Net Weight:
3 lb 12 oz
  Gross Weight:
3 lb 12 oz
