ABB

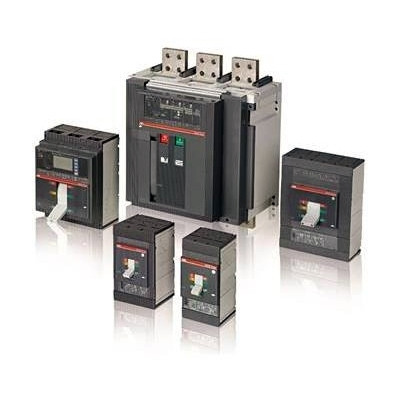

Molded Case Circuit Breakers, TMAX Series
Item# TS3N080TWS8 - Circuit Breaker, 3-P, 80A/600V, Thermal-Magnetic, Open, W/O Lugs, 25KAIC@480VAC, W/ 24V Shunt
TMAX Series Information
- Branch Circuit Protector
- UL 489 Listed E93565
- 15 ~ 2500 Amps
- 240/277/480/600Y VAC
- 250/500/600 VDC
Specifications
Item Number:
TS3N080TWS8
UPC:
804325456012
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
TMAX
Poles:
3
Amps:
80
UL Standard:
kAIC @ 480 VAC:
25
Max Voltage:
600 VAC;600 VDC
Shunt Trip:
Yes
Protection:
Branch Circuit
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Panel
kAIC @ 240 VAC:
65
CSA Standard:
22.2
IEC Standard:
EN60898/60947-2
kAIC @ 600 VAC:
14
kAIC @ 500 VDC:
35
kAIC @ 600 VDC:
20
Approvals:
UL;CSA;IEC
H x W x D:
6.7 in x 4.13 in x 4.07 in
Net Weight:
1 lb
Gross Weight:
1 lb
